| Feature | Specification |

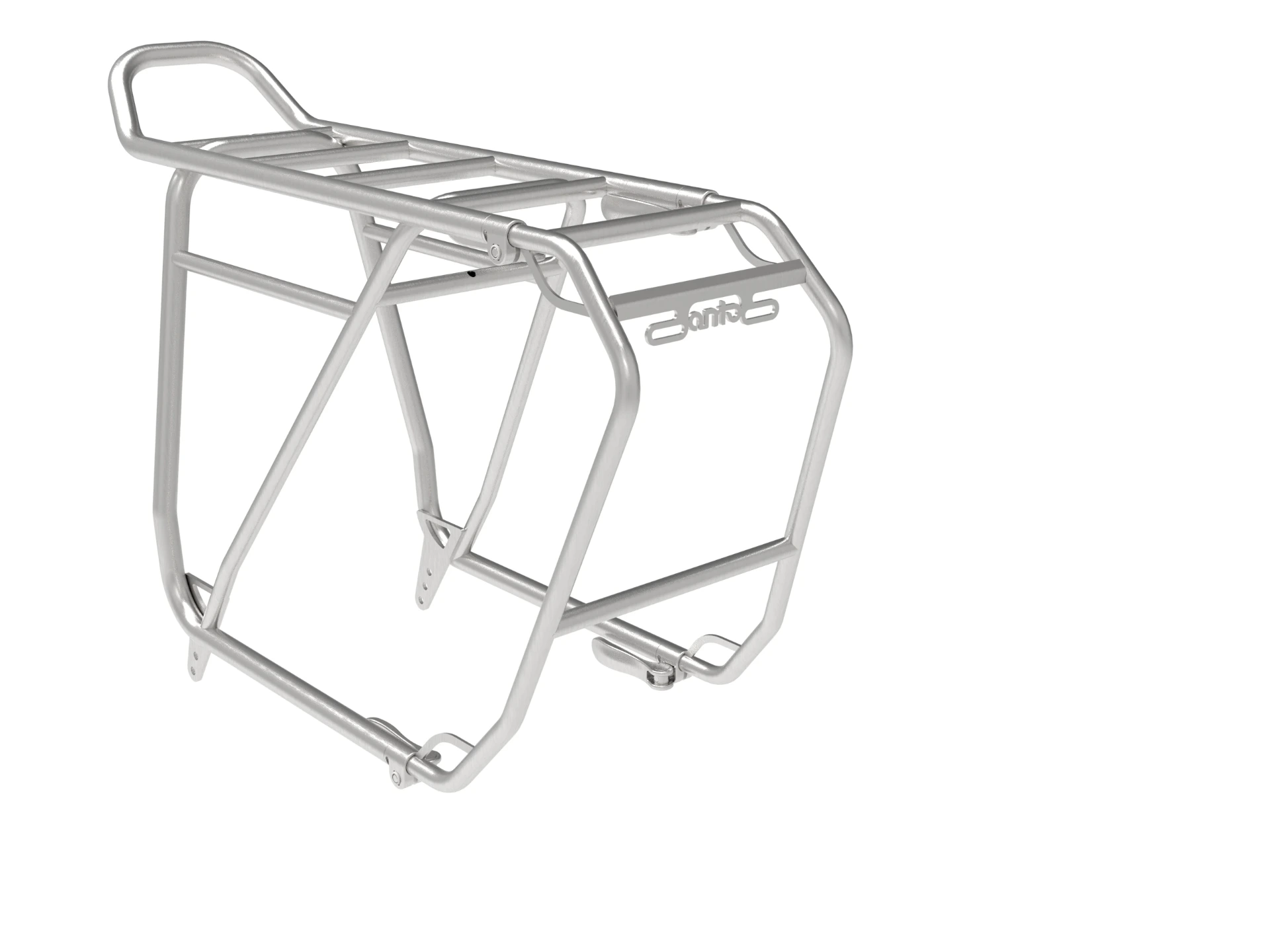

| Model / SKU | ANTO Wing Original |
| Test standard | EN ISO 11243:2016 (Class 25 kg) |
| Weight | approx. 1.5 kg |
| Max. load capacity | 25 kg (max. 8 kg behind the rear axle) |
| Wheel size | 26–29 inches |
| Material & surface | V2A stainless steel, shot blasted |
| Overall dimensions (L × W × H) | 550/750 mm × 220 mm × 450 mm |
| Loading area (L × W) | 500 mm (+ 200 mm extendable) × 150 mm |
| Rear axle width (mounting distance) | 185–190 mm (inside) |
| Rear light mounting | Eyelets for 50 mm & 80 mm hole spacing |
Prohibition of use: The transport of persons, children, child seats, or animals is strictly prohibited. Do not make any structural changes to the product.
Weight distribution: From the maximum load of 25 kg, a maximum of 8 kg may be placed behind the rear axle only. The permissible total weight of the bicycle (bicycle + rider + load) must not be exceeded.
Regulated tightening torques:
M6 screws: 6.8 Nm
M5 screws: 5.0 Nm
Frame mounting set: 4.3 Nm
Before each ride: Check the tight fit of all screws, secure the load, and ensure that rear lights and reflectors are not obscured.
Kronfeld Engineering
Owner: Karl Kronfeld
Main St. 9
16259 Beiersdorf-Freudenberg
Germany
Contact: info@anto.de | www.anto.de
Standard shipping times
Link to the complete shipping cost overview
For a step-by-step guide on using and assembling the anto load surface:
- Schau dir unseren YouTube-Kanal an
[1] 1× ANTO wing original
[2] 2× M6 × 14 mm screws (Torx T-30)
[3] 2× M5 × 14 mm screws (Torx T-25)
Required tools (not included in delivery):
Torx key T-25 (for M5 screws)
Torx key T-30 (for M6 screws)
Torque wrench (with T-25 / T-30 attachments)
Mounting options (The required tools depend on the chosen mounting set):
Extensions 5, 7, 9
- Torx key T-30
- 10 mm open-end wrench
Fender mounting set
- Torx key T-25
- 8 mm open-end wrench
Mounting set
- Torx key T-25
- Hex key 4 mm
- Hex key 5 mm
- 8 mm open-end wrench
- Metal saw
Does the Original cargo platform fit your bike?
Compatible with:
- Bikes and e-bikes from 26-29 inches
- Wide rear axles like Boost / SuperBoost
- Attachment via fender and/or seat stays as well as dropouts
- Threaded attachments 2x M6, optional M5 possible
- Attachment distance of dropouts (inside): 185 - 190 mm (±10%)
- Rear light mounting with 50 & 80 mm hole spacing eyelets
More driving stability with luggage bags
The lower position of the bags ensures a lower center of gravity and more stability - even with heavy loads.
Space behind the child seat
The compact design provides enough space for child seats and offers secure support for bags and accessories.
Ready for everyday life and tours
Whether shopping, commuting, or cycling trips - the load surface Lite carries what you need. Reliable, lightweight, and durable.
Take along what would otherwise have to stay at home.
With the ANTO load surface, you can easily transport bulky, unusual, and large items, opening up possibilities that were previously unthinkable.
