| Feature | Specification |
| Model / SKU | ANTO Wing (Lite / OEM) |
| Test standard | EN ISO 11243:2016 (Class 25 kg) |
| Weight | 1.2 kg |
| Max. load | 25 kg (max. 8 kg behind the rear axle) |
| Dimensions (L × W × H) | 530 mm × 220 mm × 420 mm |
| Wheel sizes | 26″ to 36″ |
| Rear axle width | 135 mm – 190 mm |
Prohibition of use: The transport of persons, children, child seats, or animals is strictly prohibited. Do not make any structural changes to the product.
Weight distribution: From the maximum load of 25 kg, a maximum of 8 kg may be placed behind the rear axle . The permissible total weight of the bicycle (bicycle + rider + load) must not be exceeded.
Regulatory tightening torques:
M6 screws: 6.8 Nm
M5 screws: 5.0 Nm
Frame mounting set: 4.3 Nm
Before each ride: Check the secure fit of all screws, secure the load, and ensure that taillights and reflectors are not obscured.
Kronfeld Engineering
Owner: Karl Kronfeld
Main St. 9
16259 Beiersdorf-Freudenberg
Germany
Contact: info@anto.de | www.anto.de
Standard shipping times
Link to the complete shipping cost overview
For a step-by-step guide to using and assembling the anto loading area:
- Schau dir unseren YouTube-Kanal an
Scope of delivery

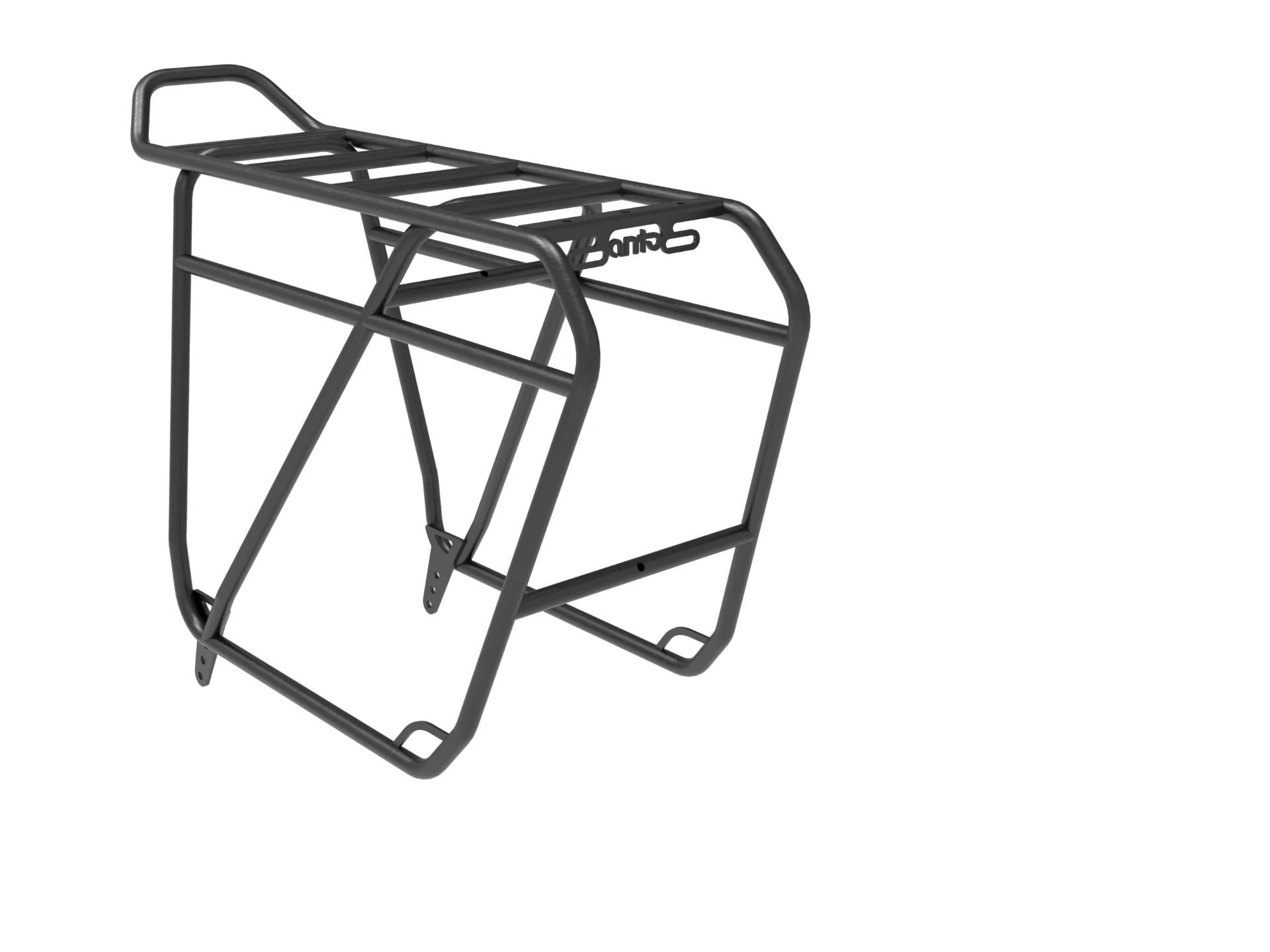

[1] 1× ANTO Wing Lite
[2] 2× M6 × 14 mm screws (Torx T-30)
[3] 2× M5 × 14 mm screws (Torx T-25)
Required tools (not included in the scope of delivery):
Torx key T-25 (for M5 screws)
Torx key T-30 (for M6 screws)
Torque wrench (with T-25 / T-30 attachments)
Mounting options (The required tools depend on the chosen mounting set):
Extensions 5, 7, 9
- Torx key T-30
- 10 mm open-end wrench
Fender mounting set
- Torx key T-25
- 8 mm open-end wrench
Mounting set
- Torx key T-25
- Hex key 4 mm
- Hex key 5 mm
- 8 mm open-end wrench
- Metal saw
Does the Wing Lite fit your bike?
Compatible with:
- Bicycles and e-bikes from 26-29 inches
- Attachment to fenders and dropouts
- Threaded attachments M5 or M6
- Rear light mounting possible (50 or 80mm hole spacing)
- Most luggage bags & bags with fender clip
More riding stability with luggage bags
The lower position of the bags provides a lower center of gravity and more stability - even with heavy loads.
Space behind the child seat
The compact design leaves enough room for child seats and provides secure support for bags and accessories.
Ready for everyday use and tours
Whether shopping, commuting, or cycling trips - the loading area Lite carries what you need. Reliable, lightweight, and durable.
Take with you what would otherwise have to stay at home.
With the ANTO loading area, you can easily transport bulky, unusual, and large items, opening up possibilities that were previously unthinkable.
